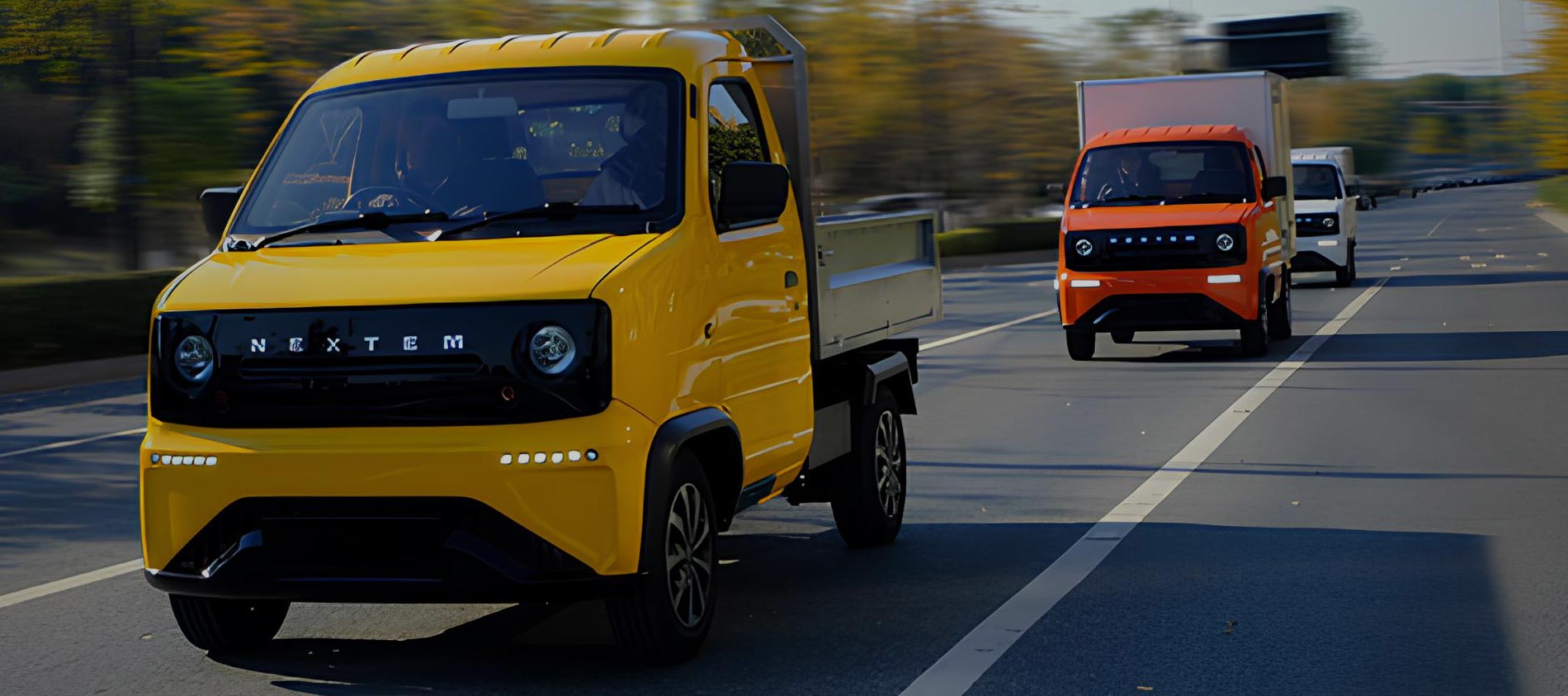

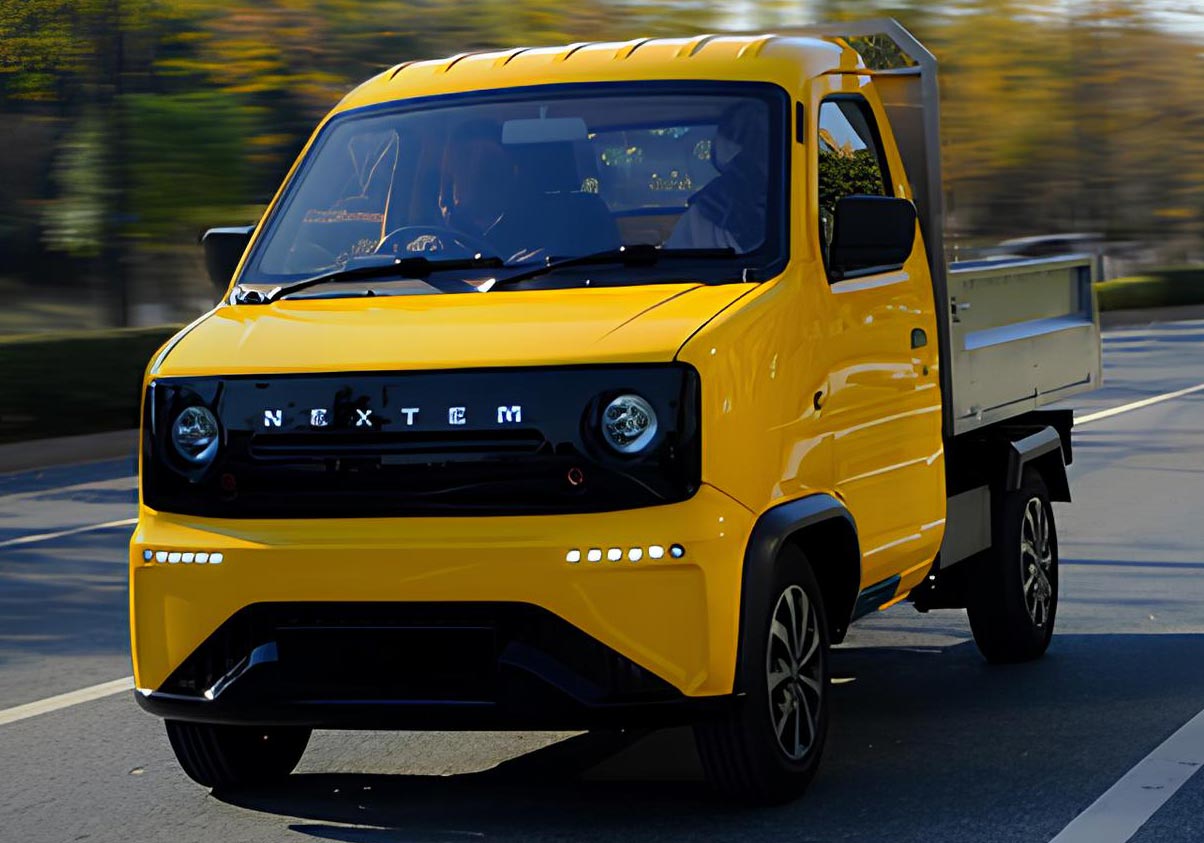

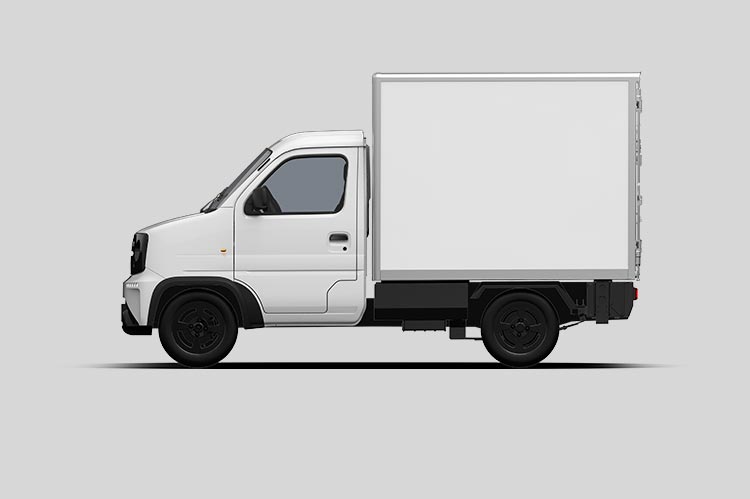

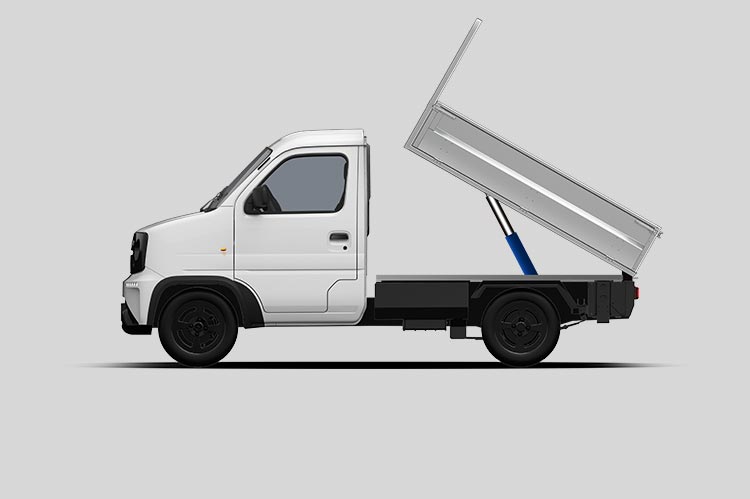

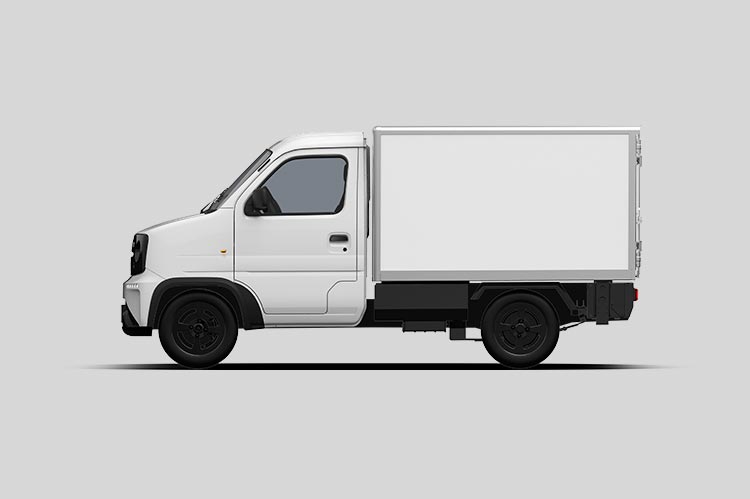

A simple, versatile, compact, and lightweight compact vehicle platform with great value, payload and good all-round performance - speed, acceleration and gradability.
Multi-functional models for diverse applications.
Length
158" (4000mm) - Standard
169" (4300mm) - Optional
Width
63" (1600mm)
Height
75" (1890mm)
Box dimesion
79"* 67"* 48"
2010mm* 1600mm* 1210mm
Wheelbase
98" (2495mm)
Payload
2200lb (1000kg)
Range
124mi (200km)
Battery type
LFP
Motor power
15KW / 30kW (Peak)
Drive mode
2WD Rear
Net weight
2645lb (1200kg)
Maximun speed
25mph (40kph)
Charging time
5h
Maximun gradeability
28%
Battery capacity (kWh)
33
Peak torque
>150 Nm

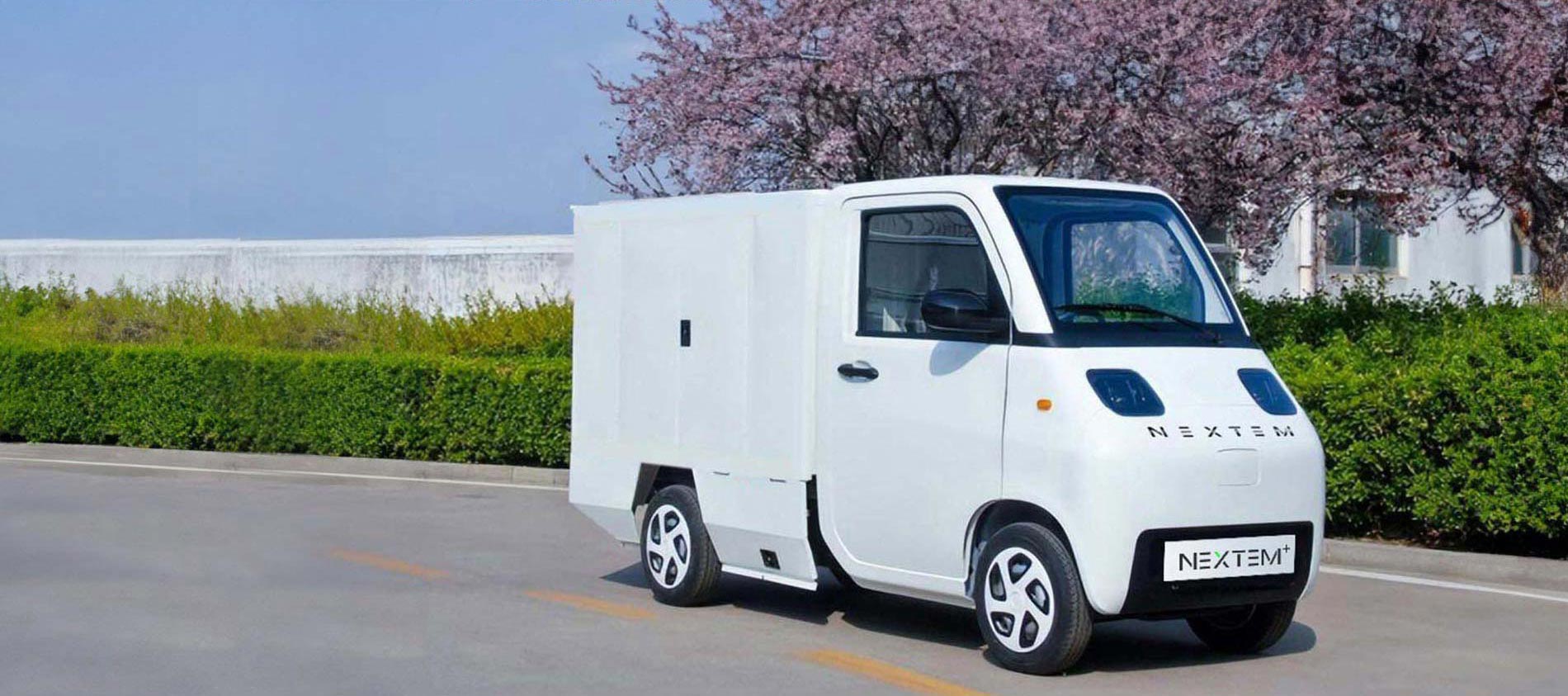

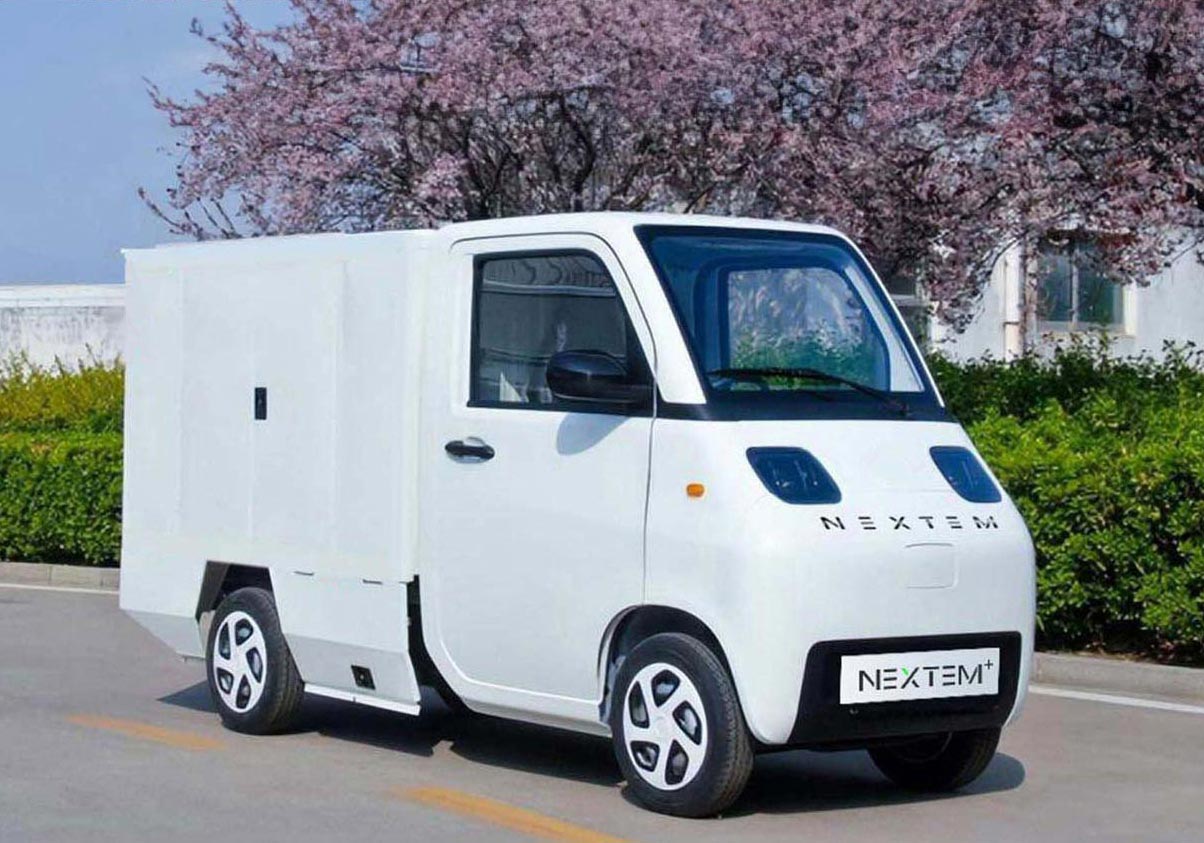

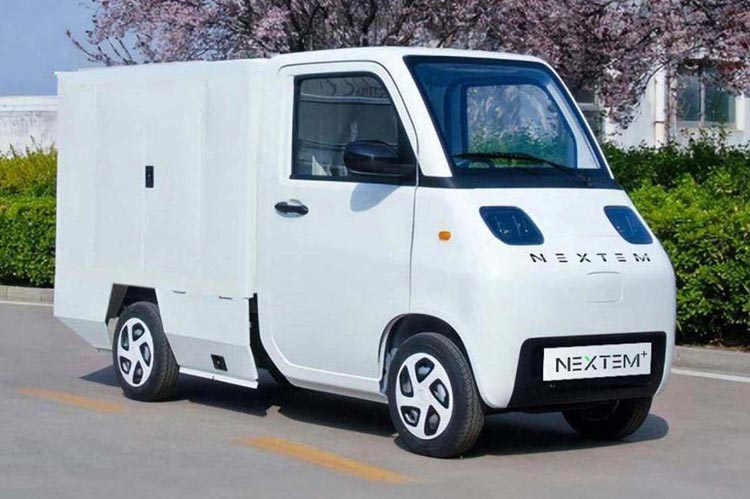

A highly capable all-electric all weather campus micro mobility solution.
It has all the essentials and performance needed to complete your campus work day tasks.
Dimensions
Cabin Width
43" (1080mm)
Wheelbase
87" (2200mm)
Seat
1

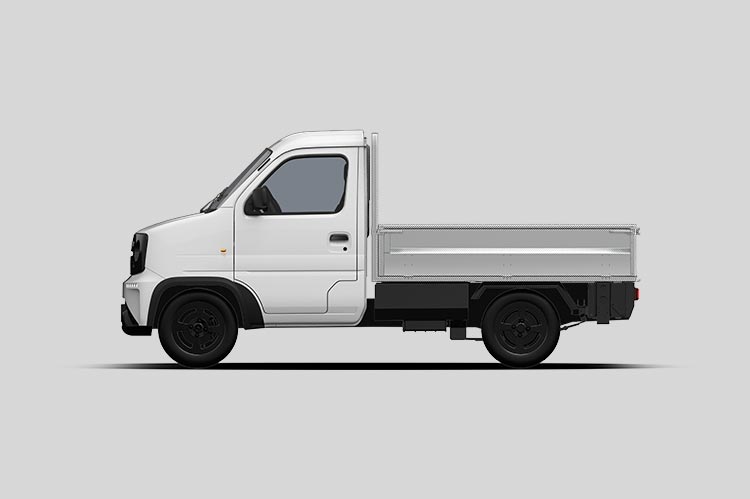

Vehicle with Cargo Box
137" x 43" x 67"
(3474mm × 1080mm × 1700mm)
Box Size
70" x 42" x 40"
(1760mm × 1060mm × 1020mm)
Front Wheel Track
36" (920mm)
Rear Wheel Track
36" (920mm)

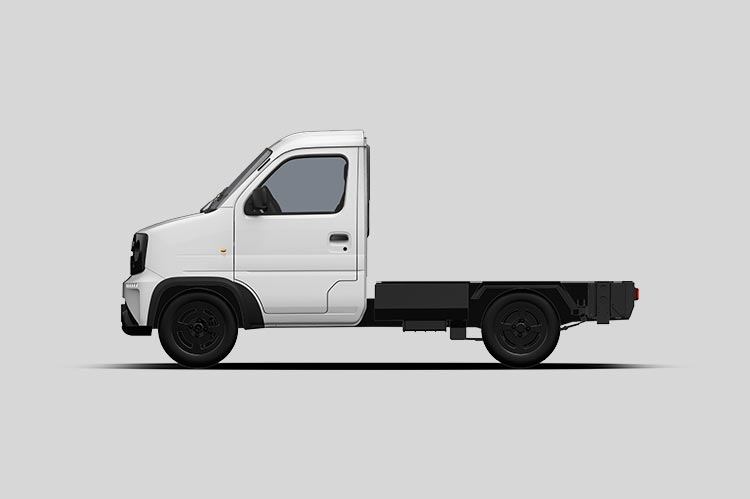

Vehicle Chassis only
33" x 43" x 66"
(3380mm × 1080mm × 1685mm)
Range (CLTC)
49mi (80km)
Weight
Curb Weight
1389 lb (630kg)
Payload
496lb (225kg)
Gross Weight
2094lb (950kg)
Motor
Type
Permanent Magnet
Nominal Power / Peak Power
7.5/15
Climbing Gradient (%)
25
Tractor Axle
Rear
Battery
Type
Lithium
Battery Heating
Yes
Capacity
8.4kWh
Charging
Charging Power
AC 2kW
Charging Time
<6h
Voltage
High Voltage
96V
Low Voltage
12V
Front Suspension
Type
MacPherson Independent
Rear Suspension
Type
Leaf Spring
Gear Ratio
10
Wheel
Rim - Material
Steel
Rim - Size
4.00Bx12
Tire - Size
135/70R12
Braking System
Type
Hydraulic
Power assist
Electric Vacuum
Brake
Front Disc / Rear Drum
Parking Brake
Foot pedal
EPB with auto hold
Air Conditioner
Optional

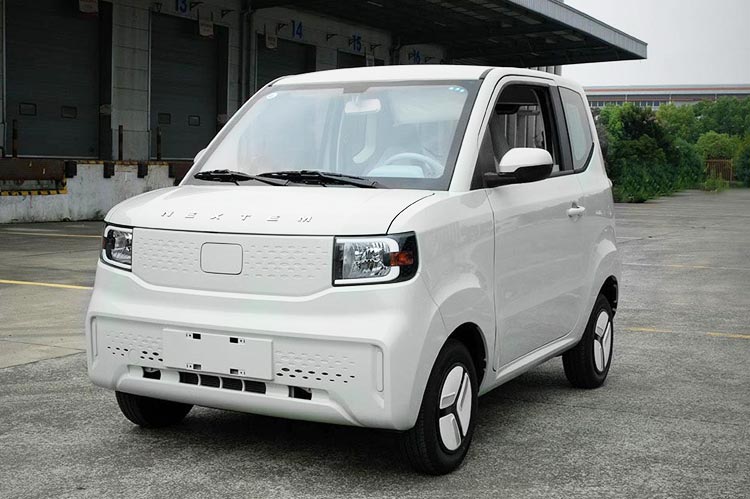

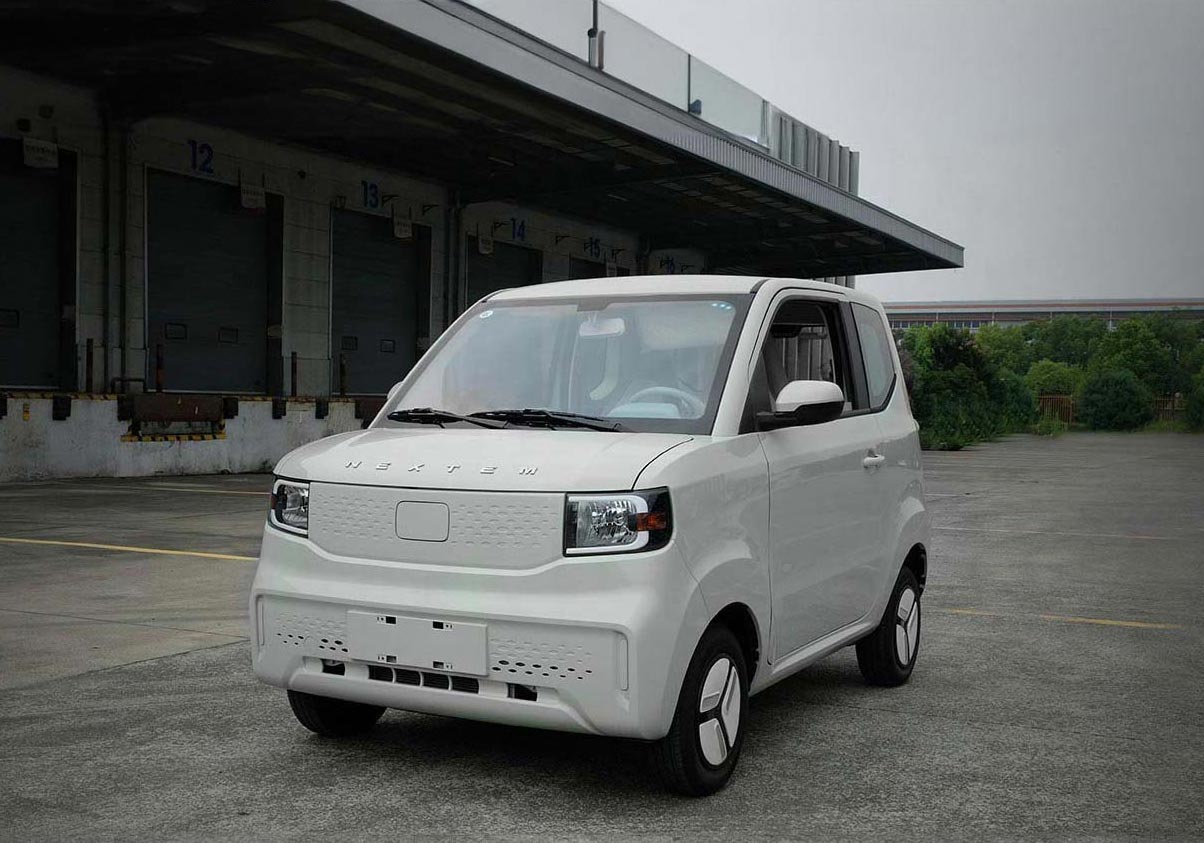

An attractive and smart low-cost all-weather micro electric car. The RIDE is good for both campus and facility use providing economical and environmentally friendly transportation for up to 4 people.
Length
115" (2930mm)
Width
60" (1517mm)
Height
64" (1620mm)
Seats
2
Doors
3
Luggage capacity
1m³
Range
125mi (200km)
Wheelbase
76" (1940mm)
Motor power
15KW/20kW(Peak)
Drive mode
2WD Rear
Net weight
1587lb (720kg)
Maximun speed
2mi/h (100 km/h)
Charging time
7h
Maximun gradeability
20%
Battery capacity (kWh)
15.5
Battery type
LFP

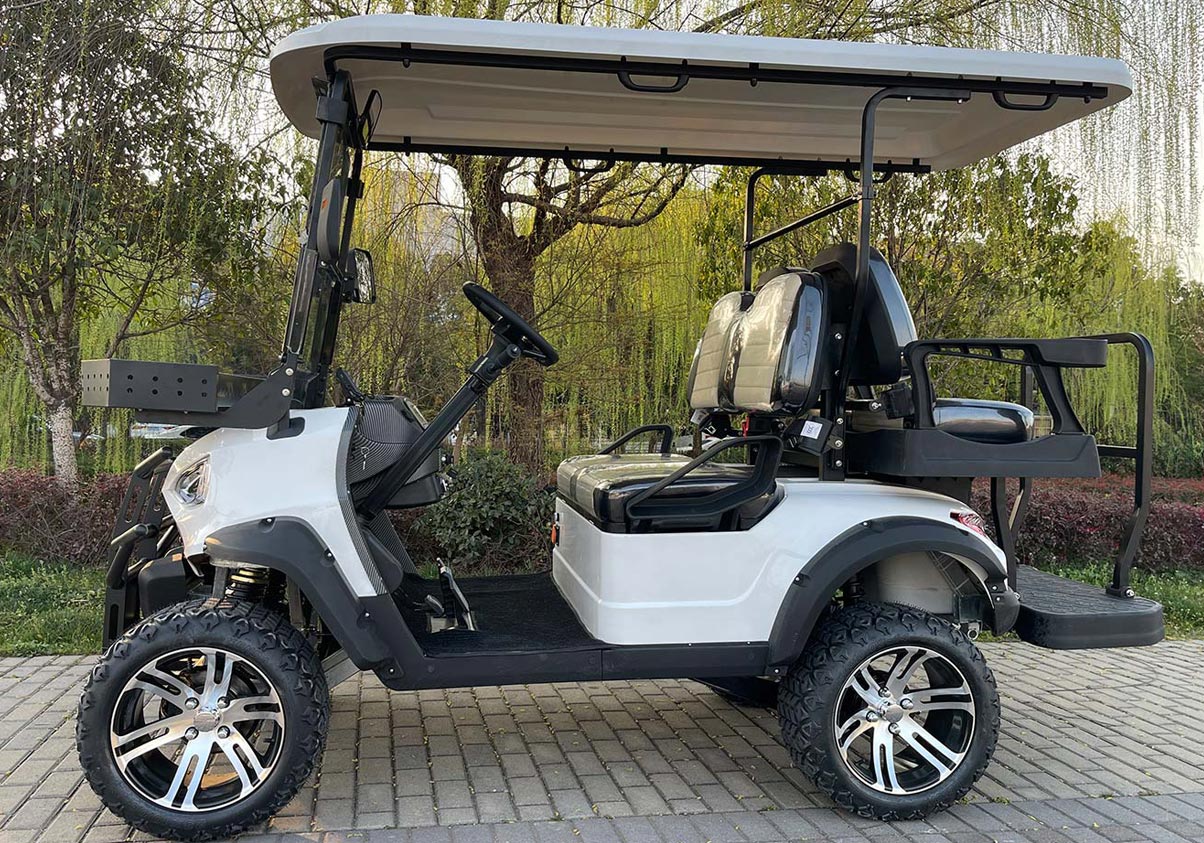

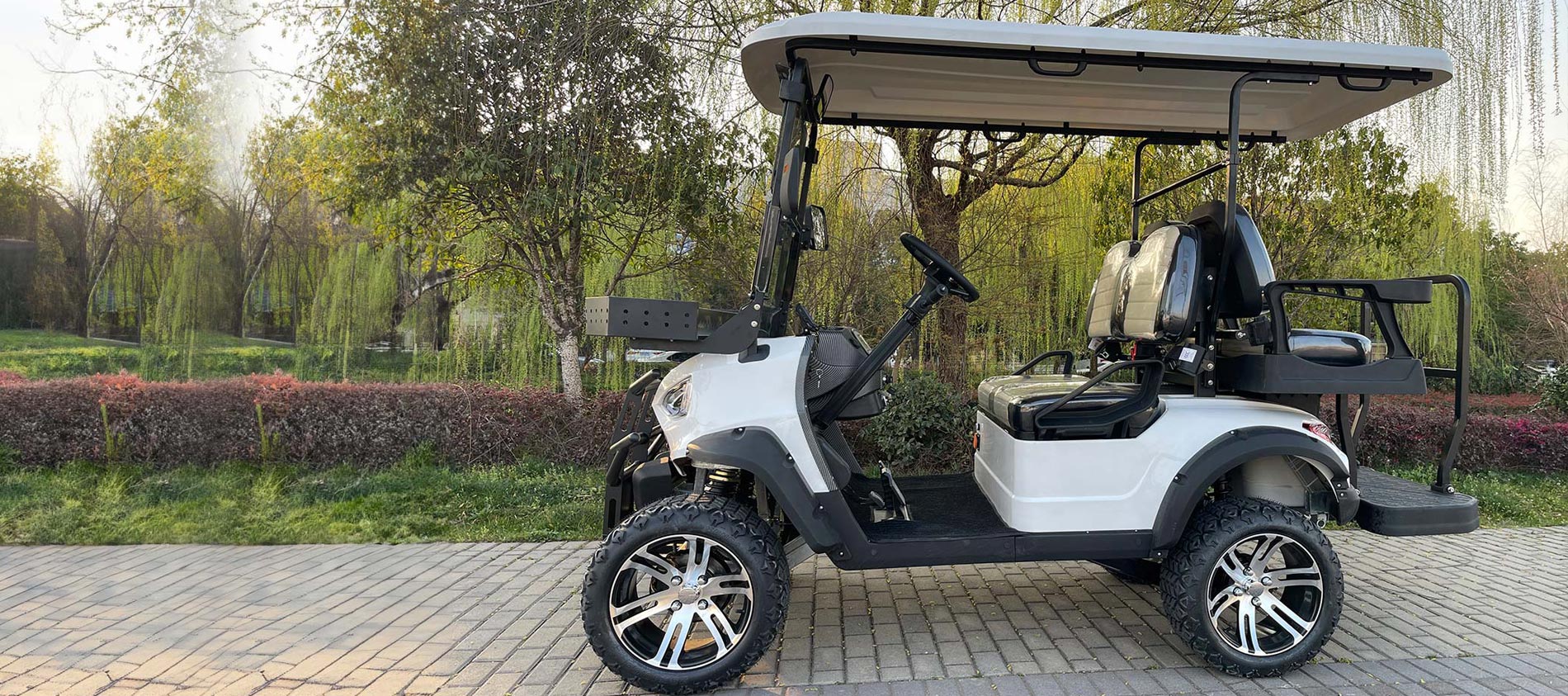

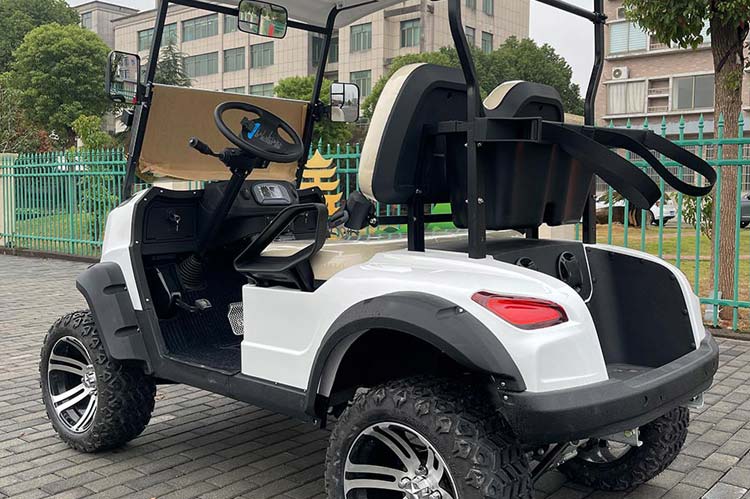

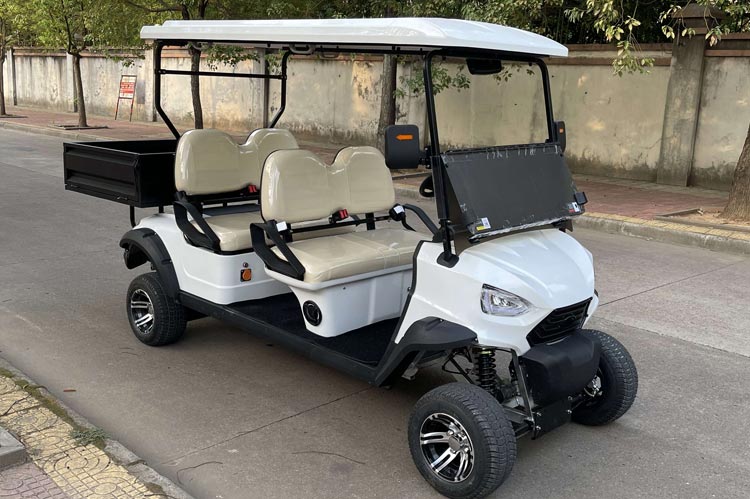

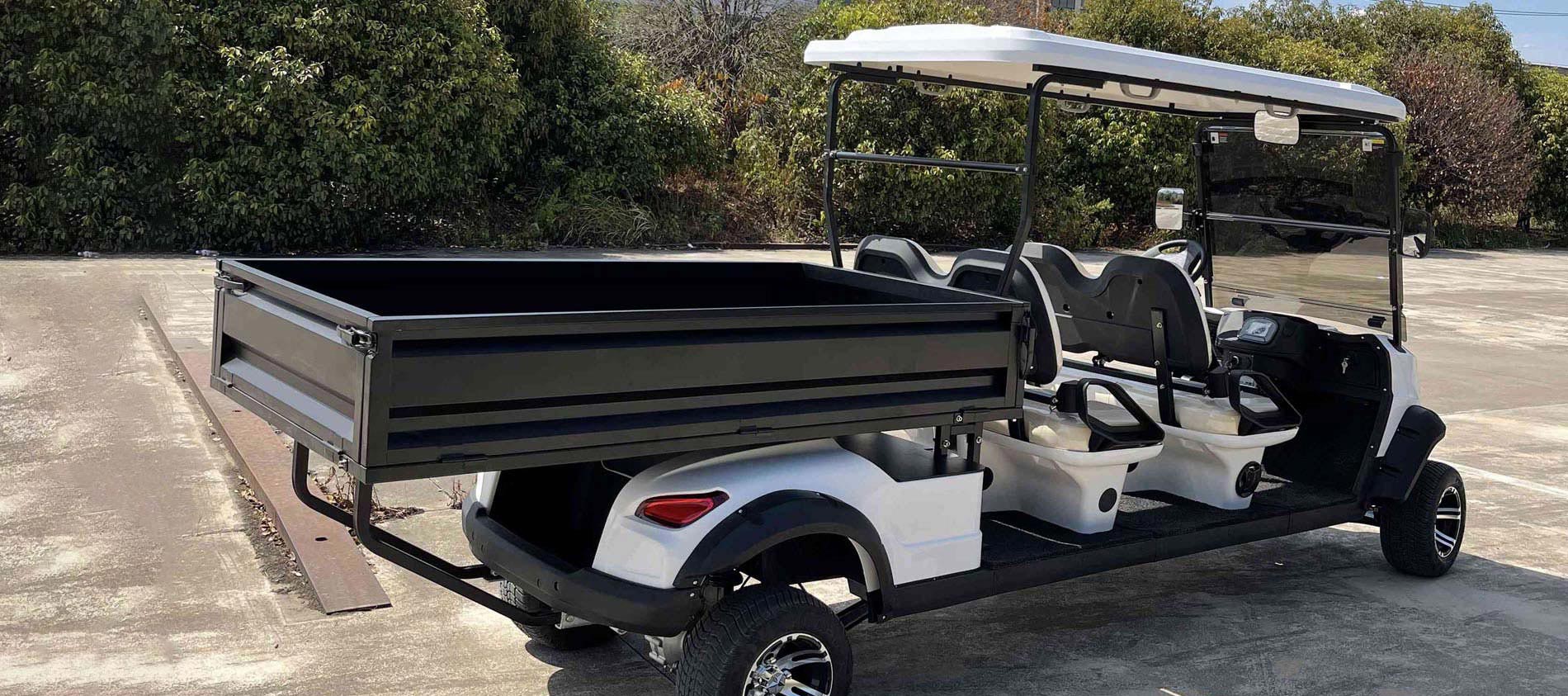

Have a need for a campus, agriculture or turf vehicle that will not only carry up to 4 passengers but their tools, equipment and materials, too? The Burro SB (short bed)has a generous heavy duty bed and features normally found only on high end vehicles. Ask us about options to carry more passengers.
Seats
4 Seater
Body color
to be confirmed
Charger type
Car charger American standard 48V25A 100-240V
wide voltage
Model
JXG-B401
System
(volts,AC,DC)
AC
Unit Price（FOB) Lead-acid maintenance-free battery 150A/H
4345
Motor/Options Brand amps
5KW
Controler / options / Types Brand
AC48V350A
Charger / options / Type
48V25A
Key Components
With waterproof function
Range (loaded) based on flat road at a speed of 12mph (mi)＊
50-62mi (80-100km)
Max. speed
15-25mph (25-40kph)
Minimum turning radius
11.5ft (3.5m)
Max. climbing ability (loaded)
25%
Net weight without battery
3200* 1340* 1950
Min. ground clearance
6.7" (170mm)
Wheelbase
96" (2440mm)
Front wheel tread
38" (960mm)
Rear wheel tread
40" (1000mm)
Frame / Mat"l
Welded steel framework with phosphate + electro-coating treatment
Body / Mat"l
PP plastic front body + PP plastic rear body
Roof / Mat"l
ABS material
Windshield / Mat"l
Organic glass Windshield, hinged
2 point seat belt
4 sets of retractable safety belts
Seats / options / Type /Mat"l
C
ustom made
Floor/ options / Type/Mat'l
Black foot pad
Steering wheel style/options
Carbon fiber steering wheel
Beverage holders
4 cups drink holders
Inner rear view mirror
Installation above the front windshield
Side rear view mirrors
Rearview mirror with LED turn signal
Lighting system and horn
Headlights, steering lights, driving lights,
brake lights
Digital Meter
MPH instrument
USB port
Dual USB ports
Multi-Media Player / Radio / Bluetooth / Options
10.1" LCD screen features included inside
12V accessory plug
Installed on the dashboard
Steering system
Single-stage rack and pinion steering system,
automatic rocker compensating function
Brake system
Four wheel hydraulic brake
Accelerator
Stepless
speed change
Suspension system
The MacPherson independent Suspension System + spring suspension
Driving modes
Motor direct driving
Rear axle
12.31:1
Wheel & Tire
(14x7' Aluminum Rim, 23*10-14)
Standard Body Color
(customized color if available, ) Any customization
Standard Seat Color
Any customization
Speakers type how many
2
Turn Signals
Led
Touch Screen Size, Type, Functions
10.1" touch LCD screen

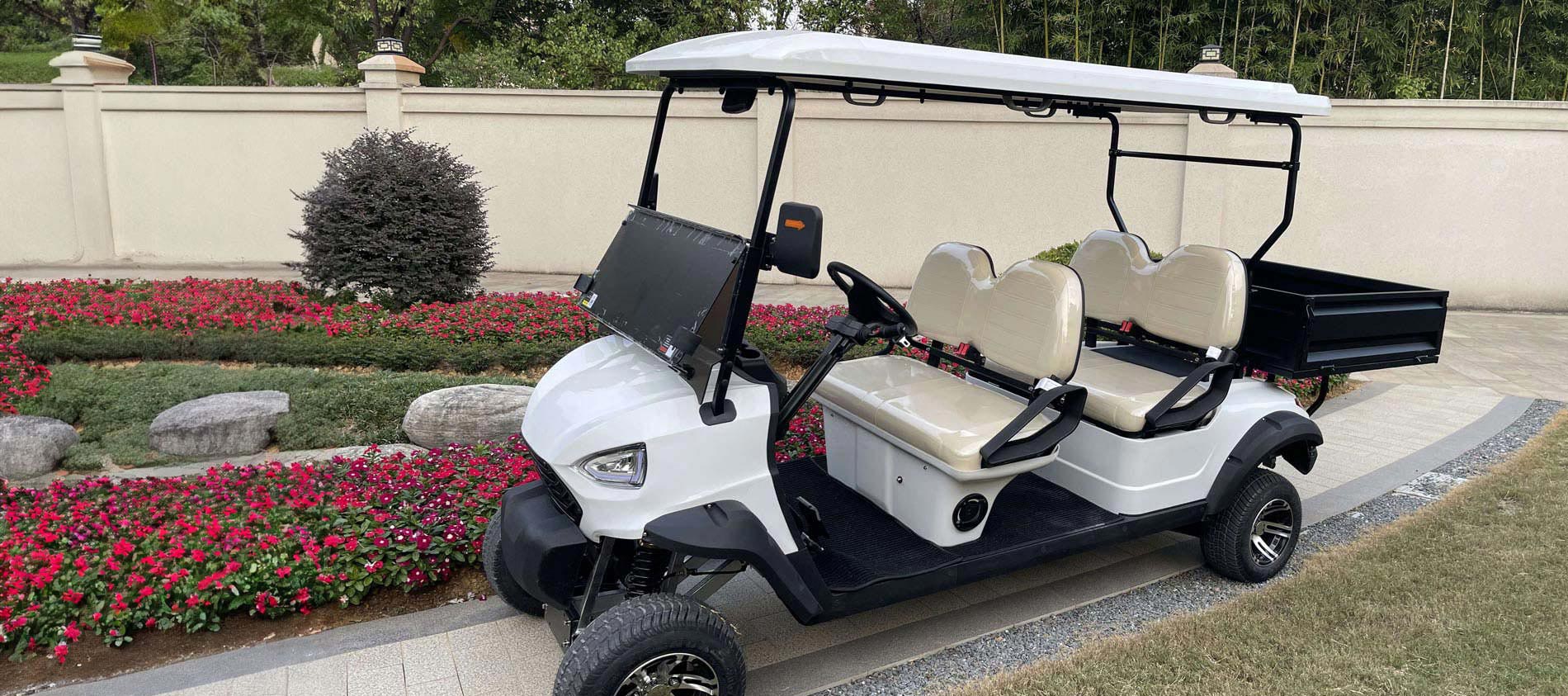

Have a need for a campus, agriculture or turf vehicle that will not only carry up to 4 passengers but their tools, equipment and materials, too? The Burro LB (long bed) has a generous heavy duty bed and features normally found only on high end vehicles. Ask us about options to carry more passengers.
Seats
4 Seater
Body color
to be confirmed
Charger type
Car charger American standard 48V25A 100-240V
wide voltage
Model
JXG-B401
System
(volts,AC,DC)
AC
Unit Price（FOB) Lead-acid maintenance-free battery 150A/H
4345
Motor/Options Brand amps
5KW
Controler / options / Types Brand
AC48V350A
Charger / options / Type
48V25A
Key Components
With waterproof function
Range (loaded) based on flat road at a speed of 12mph (mi)＊
50-62mi (80-100km)
Max. speed
15-25mph (25-40kph)
Minimum turning radius
11.5ft (3.5m)
Max. climbing ability (loaded)
25%
Net weight without battery
3200* 1340* 1950
Min. ground clearance
6.7" (170mm)
Wheelbase
96" (2440mm)
Front wheel tread
38" (960mm)
Rear wheel tread
40" (1000mm)
Frame / Mat"l
Welded steel framework with phosphate + electro-coating treatment
Body / Mat"l
PP plastic front body + PP plastic rear body
Roof / Mat"l
ABS material
Windshield / Mat"l
Organic glass Windshield, hinged
2 point seat belt
4 sets of retractable safety belts
Seats / options / Type /Mat"l
C
ustom made
Floor/ options / Type/Mat'l
Black foot pad
Steering wheel style/options
Carbon fiber steering wheel
Beverage holders
4 cups drink holders
Inner rear view mirror
Installation above the front windshield
Side rear view mirrors
Rearview mirror with LED turn signal
Lighting system and horn
Headlights, steering lights, driving lights,
brake lights
Digital Meter
MPH instrument
USB port
Dual USB ports
Multi-Media Player / Radio / Bluetooth / Options
10.1" LCD screen features included inside
12V accessory plug
Installed on the dashboard
Steering system
Single-stage rack and pinion steering system,
automatic rocker compensating function
Brake system
Four wheel hydraulic brake
Accelerator
Stepless
speed change
Suspension system
The MacPherson independent Suspension System + spring suspension
Driving modes
Motor direct driving
Rear axle
12.31:1
Wheel & Tire
(14x7' Aluminum Rim, 23*10-14)
Standard Body Color
(customized color if available, ) Any customization
Standard Seat Color
Any customization
Speakers type how many
2
Turn Signals
Led
Touch Screen Size, Type, Functions
10.1" touch LCD screen

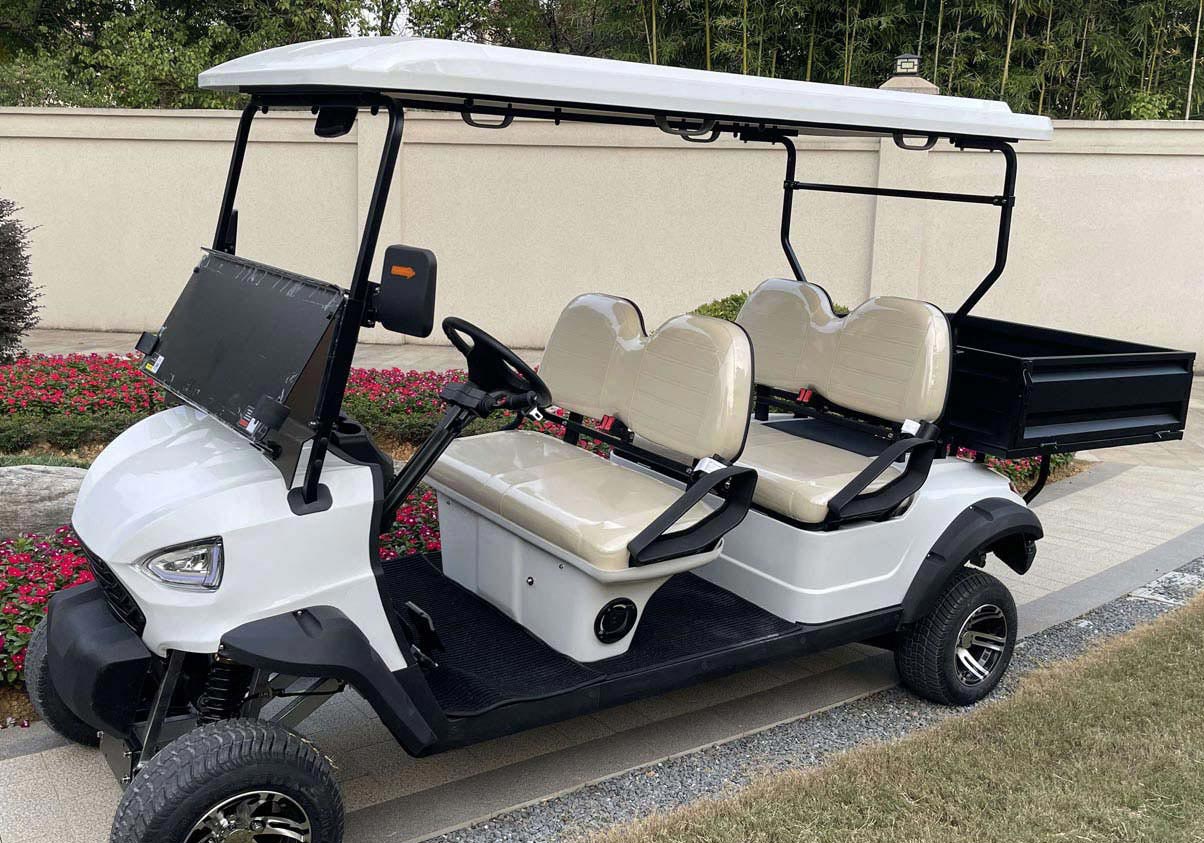

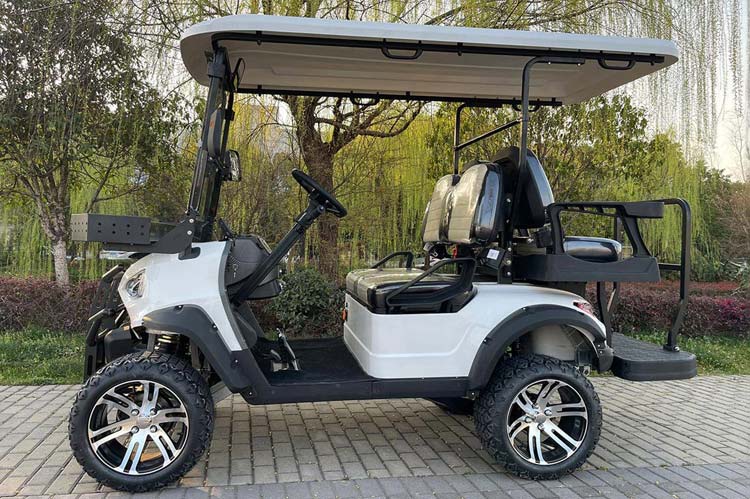

Have a need for a campus, agriculture or turf vehicle that will transport up to 4 passengers?
All of the great features found in the Burro model line and the capacity to carry people comfortably and safely.
Seats
4 Seater
Body color
to be confirmed
Charger type
Car charger American standard 48V25A 100-240V
wide voltage
Model
JXG-B401
System
(volts,AC,DC)
AC
Unit Price（FOB) Lead-acid maintenance-free battery 150A/H
4345
Motor/Options Brand amps
5KW
Controler / options / Types Brand
AC48V350A
Charger / options / Type
48V25A
Key Components
With waterproof function
Range (loaded) based on flat road at a speed of 12mph (mi)＊
50-62mi (80-100km)
Max. speed
15-25mph (25-40kph)
Minimum turning radius
11.5ft (3.5m)
Max. climbing ability (loaded)
25%
Net weight without battery
3200* 1340* 1950
Min. ground clearance
6.7" (170mm)
Wheelbase
96" (2440mm)
Front wheel tread
38" (960mm)
Rear wheel tread
40" (1000mm)
Frame / Mat"l
Welded steel framework with phosphate + electro-coating treatment
Body / Mat"l
PP plastic front body + PP plastic rear body
Roof / Mat"l
ABS material
Windshield / Mat"l
Organic glass Windshield, hinged
2 point seat belt
4 sets of retractable safety belts
Seats / options / Type /Mat"l
C
ustom made
Floor/ options / Type/Mat'l
Black foot pad
Steering wheel style/options
Carbon fiber steering wheel
Beverage holders
4 cups drink holders
Inner rear view mirror
Installation above the front windshield
Side rear view mirrors
Rearview mirror with LED turn signal
Lighting system and horn
Headlights, steering lights, driving lights,
brake lights
Digital Meter
MPH instrument
USB port
Dual USB ports
Multi-Media Player / Radio / Bluetooth / Options
10.1" LCD screen features included inside
12V accessory plug
Installed on the dashboard
Steering system
Single-stage rack and pinion steering system,
automatic rocker compensating function
Brake system
Four wheel hydraulic brake
Accelerator
Stepless
speed change
Suspension system
The MacPherson independent Suspension System + spring suspension
Driving modes
Motor direct driving
Rear axle
12.31:1
Wheel & Tire
(14x7' Aluminum Rim, 23*10-14)
Standard Body Color
(customized color if available, ) Any customization
Standard Seat Color
Any customization
Speakers type how many
2
Turn Signals
Led
Touch Screen Size, Type, Functions
10.1" touch LCD screen

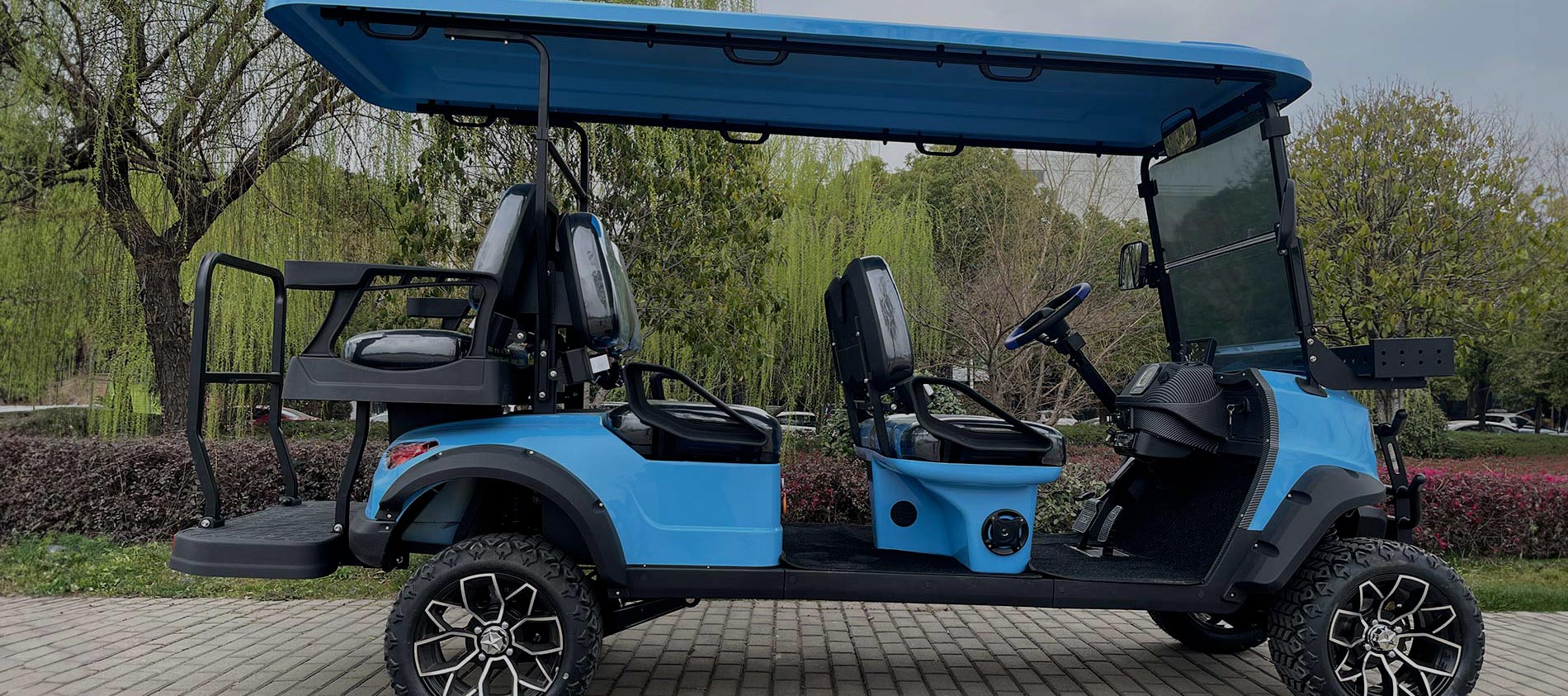

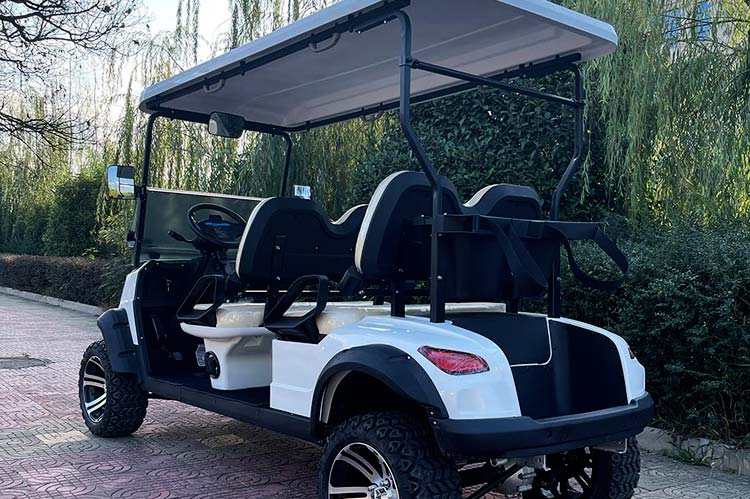

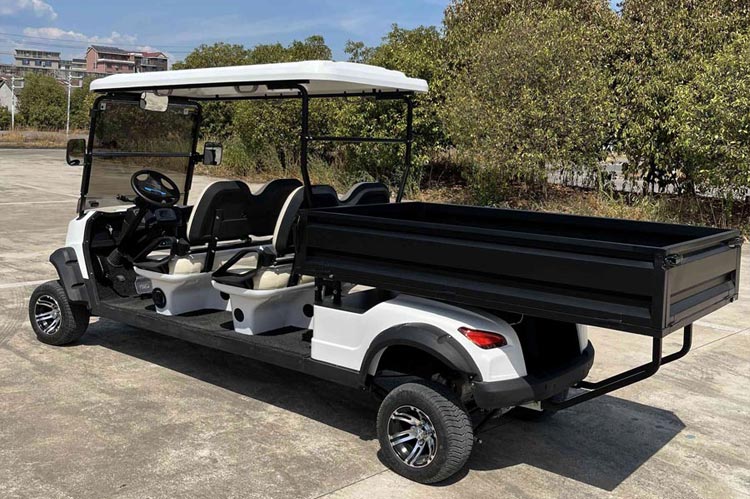

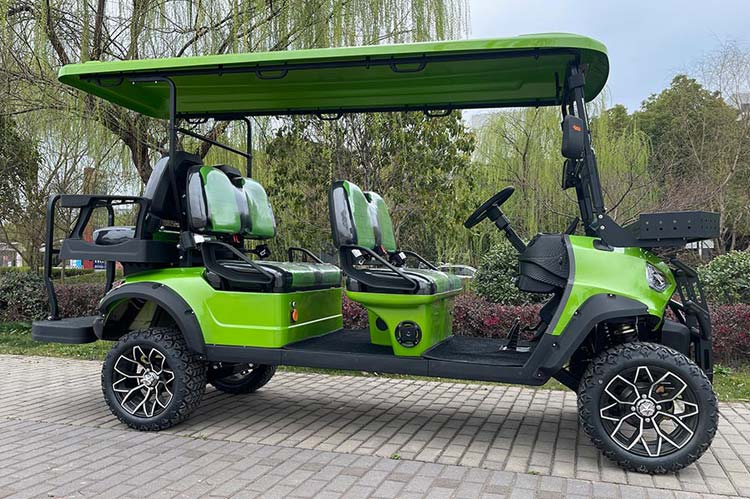

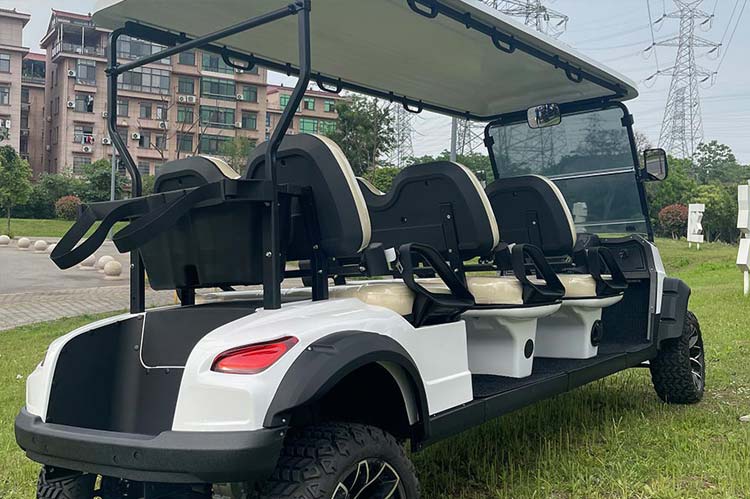

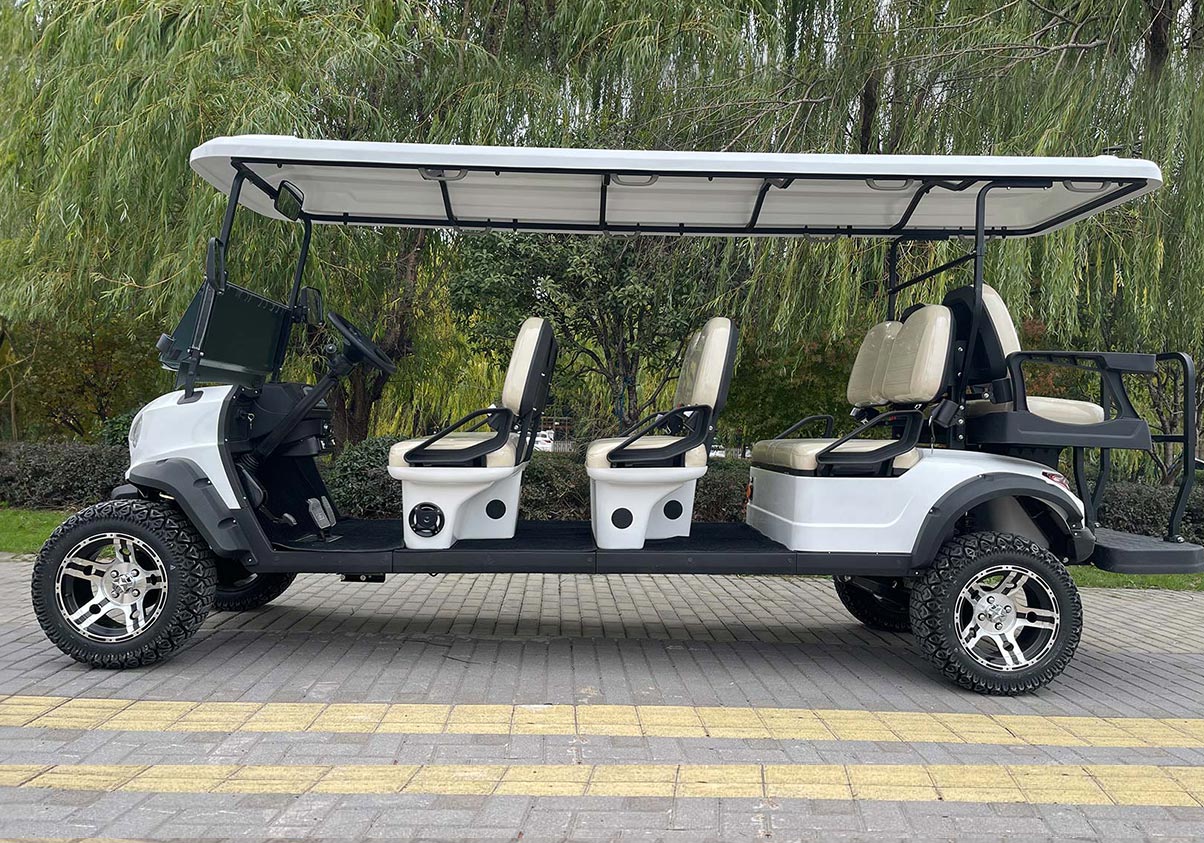

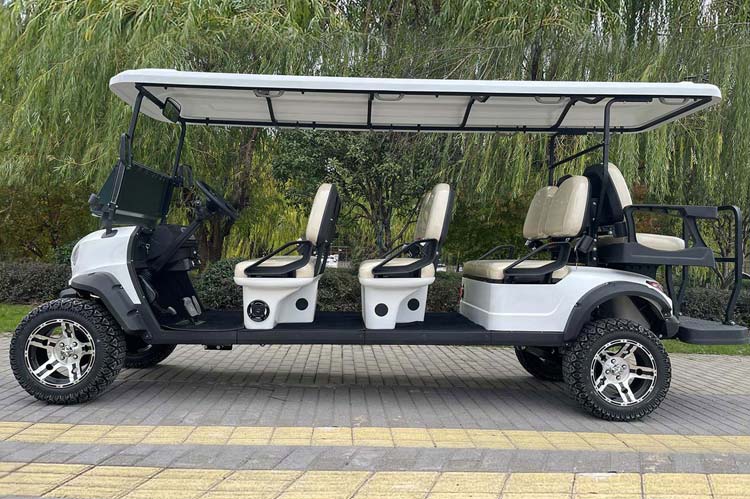

Have a need for a campus, agriculture or turf vehicle that will transport up to 6 passengers?
All of the great features found in the Burro model line but the capacity to carry more people comfortably and safely.
Seats
6 Seater
Body color
to be confirmed
Charger type
Car charger American standard 48V25A 100-240V
wide voltage
Model
JXG-B401
System
(volts,AC,DC)
AC
Unit Price（FOB) Lead-acid maintenance-free battery 150A/H
4345
Motor/Options Brand amps
5KW
Controler / options / Types Brand
AC48V350A
Charger / options / Type
48V25A
Key Components
With waterproof function
Range (loaded) based on flat road at a speed of 12mph (mi)＊
50-62mi (80-100km)
Max. speed
15-25mph (25-40kph)
Minimum turning radius
11.5ft (3.5m)
Max. climbing ability (loaded)
25%
Net weight without battery
3200* 1340* 1950
Min. ground clearance
6.7" (170mm)
Wheelbase
96" (2440mm)
Front wheel tread
38" (960mm)
Rear wheel tread
40" (1000mm)
Frame / Mat"l
Welded steel framework with phosphate + electro-coating treatment
Body / Mat"l
PP plastic front body + PP plastic rear body
Roof / Mat"l
ABS material
Windshield / Mat"l
Organic glass Windshield, hinged
2 point seat belt
6 sets of retractable safety belts
Seats / options / Type /Mat"l
C
ustom made
Floor/ options / Type/Mat'l
Black foot pad
Steering wheel style/options
Carbon fiber steering wheel
Beverage holders
6 cups drink holders
Inner rear view mirror
Installation above the front windshield
Side rear view mirrors
Rearview mirror with LED turn signal
Lighting system and horn
Headlights, steering lights, driving lights,
brake lights
Digital Meter
MPH instrument
USB port
Dual USB ports
Multi-Media Player / Radio / Bluetooth / Options
10.1" LCD screen features included inside
12V accessory plug
Installed on the dashboard
Steering system
Single-stage rack and pinion steering system,
automatic rocker compensating function
Brake system
Four wheel hydraulic brake
Accelerator
Stepless
speed change
Suspension system
The MacPherson independent Suspension System + spring suspension
Driving modes
Motor direct driving
Rear axle
12.31:1
Wheel & Tire
(14x7' Aluminum Rim, 23*10-14)
Standard Body Color
(customized color if available, ) Any customization
Standard Seat Color
Any customization
Speakers type how many
2
Turn Signals
Led
Touch Screen Size, Type, Functions
10.1" touch LCD screen
Have a need for a campus, agriculture or turf vehicle that will transport up to 8 passengers?
All of the great features found in the Burro model line but the capacity to carry more people comfortably and safely.
Seats
8 Seater
Body color
to be confirmed
Charger type
Car charger American standard 48V25A 100-240V
wide voltage
Model
JXG-B401
System
(volts,AC,DC)
AC
Unit Price（FOB) Lead-acid maintenance-free battery 150A/H
4345
Motor/Options Brand amps
5KW
Controler / options / Types Brand
AC48V350A
Charger / options / Type
48V25A
Key Components
With waterproof function
Range (loaded) based on flat road at a speed of 12mph (mi)＊
50-62mi (80-100km)
Max. speed
15-25mph (25-40kph)
Minimum turning radius
11.5ft (3.5m)
Max. climbing ability (loaded)
25%
Net weight without battery
3200* 1340* 1950
Min. ground clearance
6.7" (170mm)
Wheelbase
96" (2440mm)
Front wheel tread
38" (960mm)
Rear wheel tread
40" (1000mm)
Frame / Mat"l
Welded steel framework with phosphate + electro-coating treatment
Body / Mat"l
PP plastic front body + PP plastic rear body
Roof / Mat"l
ABS material
Windshield / Mat"l
Organic glass Windshield, hinged
2 point seat belt
8 sets of retractable safety belts
Seats / options / Type /Mat"l
C
ustom made
Floor/ options / Type/Mat'l
Black foot pad
Steering wheel style/options
Carbon fiber steering wheel
Beverage holders
8 cups drink holders
Inner rear view mirror
Installation above the front windshield
Side rear view mirrors
Rearview mirror with LED turn signal
Lighting system and horn
Headlights, steering lights, driving lights,
brake lights
Digital Meter
MPH instrument
USB port
Dual USB ports
Multi-Media Player / Radio / Bluetooth / Options
10.1" LCD screen features included inside
12V accessory plug
Installed on the dashboard
Steering system
Single-stage rack and pinion steering system,
automatic rocker compensating function
Brake system
Four wheel hydraulic brake
Accelerator
Stepless
speed change
Suspension system
The MacPherson independent Suspension System + spring suspension
Driving modes
Motor direct driving
Rear axle
12.31:1
Wheel & Tire
(14x7' Aluminum Rim, 23*10-14)
Standard Body Color
(customized color if available, ) Any customization
Standard Seat Color
Any customization
Speakers type how many
2
Turn Signals
Led
Touch Screen Size, Type, Functions
10.1" touch LCD screen
Clean Energy Mobility Solutions for Future Transportation
We create different electric mobility solutions for your clean energy transportation needs.
Define Electric Commercial Vehicles for the Next Generation.
We are not manufacturing electric commercial vehicles. We are co-creating with customers to define the vehicles they need.By participating the process of co-creation, we are transforming the traditional commercial vehicle business scenarioto satisfy different kinds of business models.
Contact Us
Info@GoFairwayEV.com
(888)322-3556
16890 Church St Building 1,
Morgan Hill, CA 95037
© Fairway EV. All rights reserved
