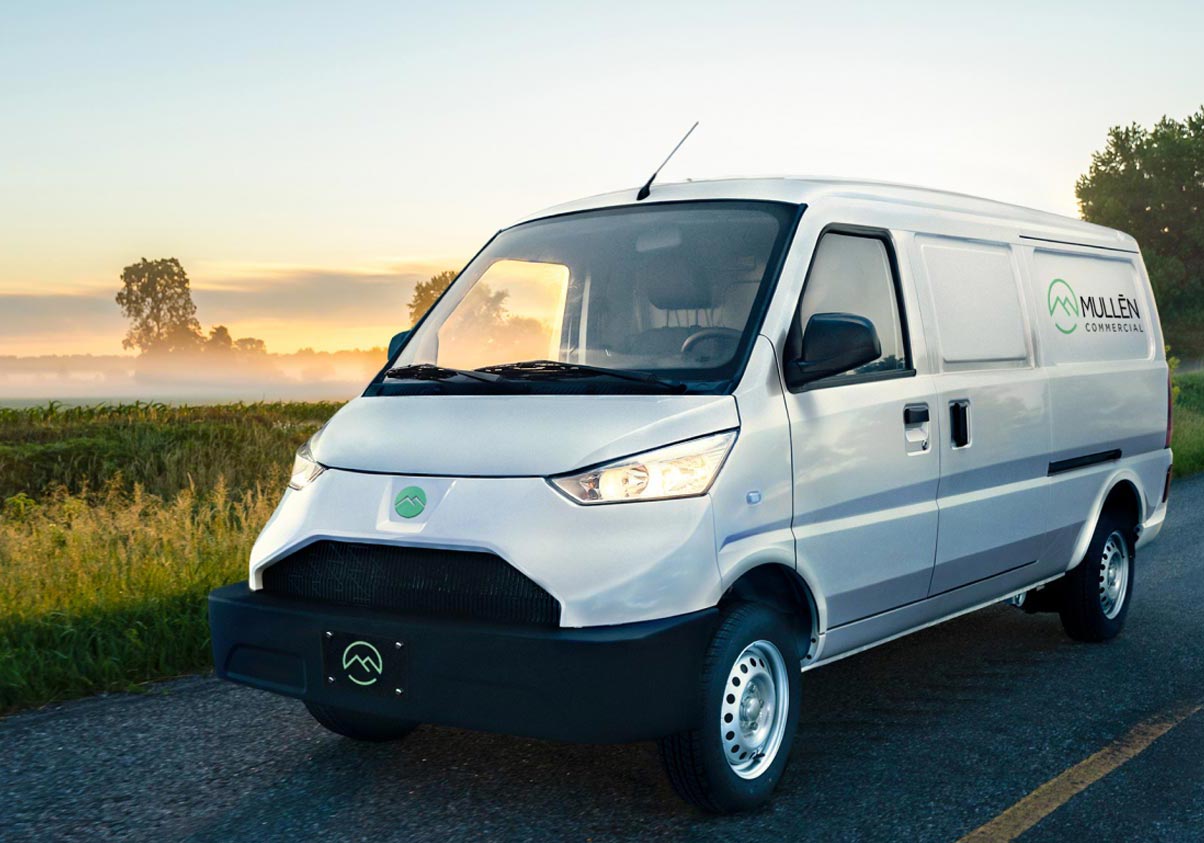

With 186 miles of range, the Mullen Campus Delivery is a highly efficient electric van designed for low-speed, closed campus use.
The Campus Delivery Van has all the same DNA as the Mullen ONE but was purpose-built to be an ideal delivery solution for micro-environments.
Accelerate your campus sustainability goals while driving operational efficiency.
DIMENSIONS & CAPACITY
Wheelbase 120 in.
LxWxH 177x64x75
GVWR 4,881 lbs.
Curb Weight 3,198 lbs.
Max Payload 1,683 lbs.
Cargo Capacity 157 cu.ft.**
Cargo Length 105 in.**
Cargo Width 58 in.
Cargo Width Inside Wheel Wells 44.5 in.
Cargo Height 52 in.
MECHANICAL
Electric Motor 60 kW
Battery Capacity 42 kWh
Range 186(1) miles
Level 2 Charging 3.3 kW
Drive Type Rear Wheel Drive (RWD)
PERFORMANCE
Horsepower 80 hp
Torque 162 lb.-ft.
Top Speed 19/24 MPH****
CARGO
Sliding Doors Right and Left
Rear Access Liftgate
LED Cargo Light Standard
Heavy Duty Floor Protector Standard
DATA CONNECTIVITY
Telematics Optional
STANDARD INTERIOR FEATURES
Analog Gauges
Digital Driver Information Center
Auxiliary Power Outlet
Charging USB Port
Cupholder
Front Illuminated Entry
Front Floor Console
Air Conditioning
Sun Visors
Cloth Seating Surfaces
4-Way Manual Driver Seat (Fore/Aft/Recline)
4-Way Manual Passenger Seat (Fore/Aft/Recline)
Adjustable Front Head Restraints
3 Passenger Rear Bench Seating w/ Bulkhead***
Power Door Locks - Front
Power Windows - Front
Rear Passenger Roll-down Window***
Cargo Tie Down Hooks (6)
STANDARD SAFETY AND SECURITY FEATURES
Seatbelt Minder
Remote Keyless Entry (2 Key Fobs)
Park Distance Control Sensors - Rear
Full-Size Spare Tire
Hill Assist
*All figures are based on a comparison to competing internal combustion engine variants.
Note: All figures are reference only and Mullen reserves the right to modify any and all information shown, without notification. Options subject to change.
(1) Range can vary depending on conditions such as climate, driving behavior, road conditions, etc.
**2-passenger model only
***5-Passenger model only
**** Top speed varies by state.

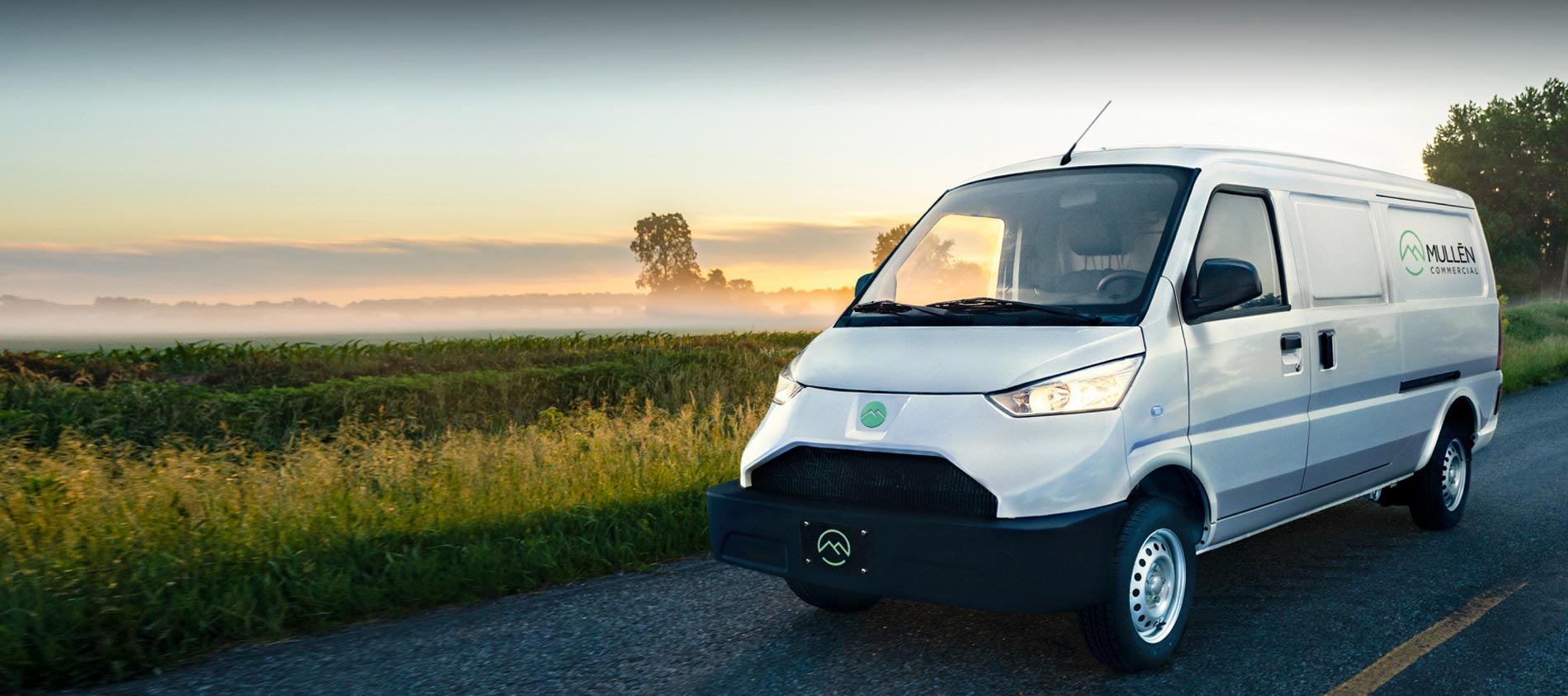

The Mullen ONE is a class 1 commercial electric vehicle, anticipated to be the first of its kind in the U.S. market.
This van was designed to navigate within narrow urban streets and residential roads, all while maximizing payload and cargo space.
The Mullen ONE’s height is less than 6.5 feet, meaning your driver can park the vehicle in a residential garage.
DIMENSIONS & CAPACITY
Wheelbase 120 in.
LxWxH 186x64x75
GVWR 4,881 lbs.
Curb Weight 3,198 lbs.
Max Payload 1,683 lbs.
Cargo Capacity 157 cu.ft.
Cargo Length 105 in.
Cargo Width 58 in.
Cargo Width Inside Wheel Wells 44.5 in.
Cargo Height 52 in.
MECHANICAL
Electric Motor 60 kW
Battery Capacity 42 kWh
Range 110(1) miles EPA Test Method
Regenerative Braking Standard
Level 2 Charging 6.6 kW
Drive Type Rear Wheel Drive (RWD)
PERFORMANCE
Horsepower 80 hp
Torque 162 lb.-ft.
Top Speed 55 mph in Drive Mode
65 mph in Eco-Sport Mode
CARGO
Sliding Doors Right and Left
Rear Access Liftgate
LED Cargo Light Standard
Heavy Duty Floor Protector Front & Rear
DATA CONNECTIVITY
Telematics Optional
STANDARD INTERIOR FEATURES
Analog Gauges
Digital Driver Information Center
Auxiliary Power Outlet
Charging USB Port
Cupholders (3)
Front Illuminated Entry
Front Floor Console
Air Conditioning
Sun Visors
Cloth Seating Surfaces
4-Way Manual Driver Seat (Fore/Aft/Recline)
Adjustable Front Head Restraints
Mobile Office
Power Door Locks - Front
Power Windows - Front
Cargo Tie Down Hooks (6)
STANDARD SAFETY AND SECURITY FEATURES
Driver Frontal Airbag
Side Curtain Airbag
Driver Seat Side Airbag
Seatbelt Pretensioner
Remote Keyless Entry (2 Key Fobs)
Park Distance Control Sensors - Rear
Pedestrian Alert
Rearview Camera
Hill Assist
Tire Pressure Monitoring system (TPMS)
Anti-Lock Braking System (ABS)
Electronic Stability Control (ESC)
Traction Control (TCS)
Full-Size Spare Tire
*All figures are based on a comparison to competing internal combustion engine variants.
Note: All figures are reference only and Mullen reserves the right to modify any and all information shown, without notification. Options subject to change.
(1) Range can vary depending on conditions such as climate, driving behavior, road conditions, etc.

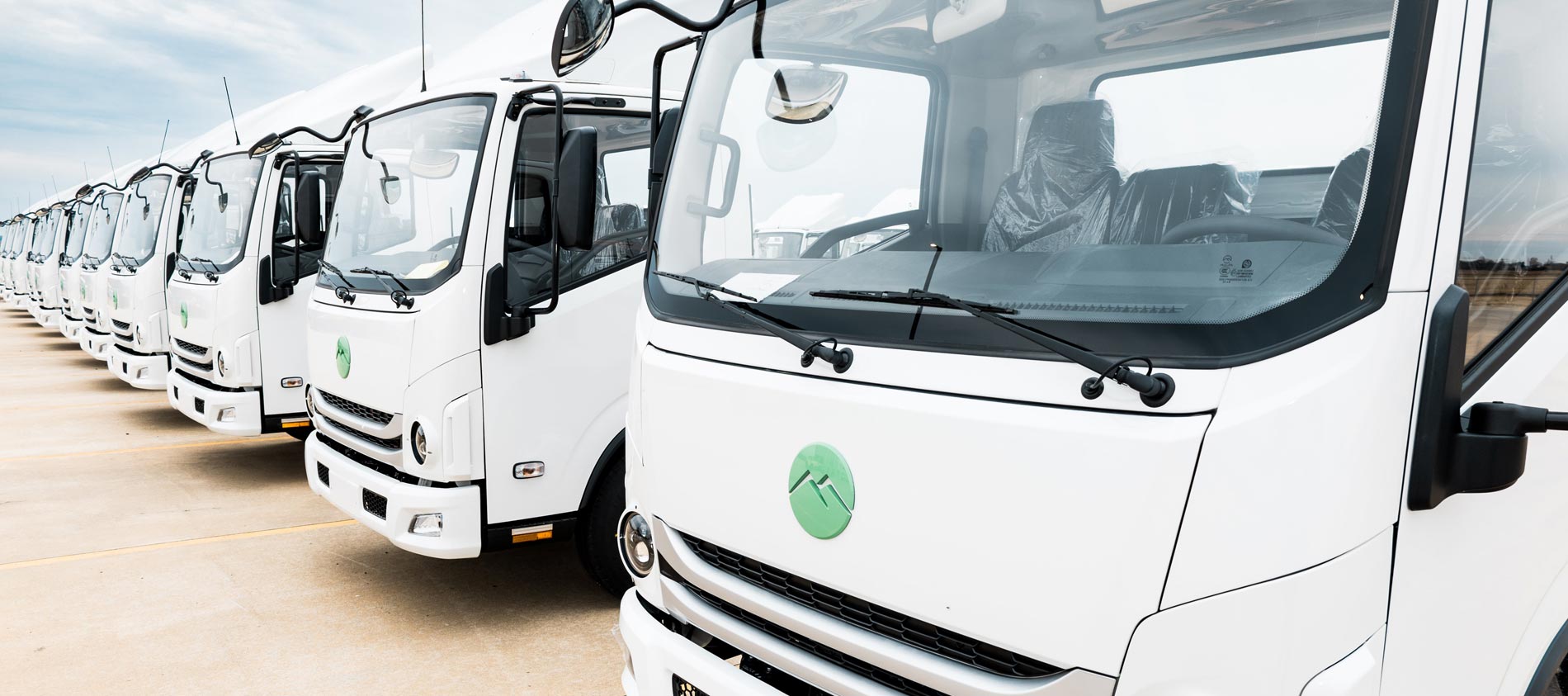

The efficient class 3 low cab forward features a tight turning diameter of 38 feet and excellent visibility for superior maneuverability on narrow city streets. Even in reverse, maneuverability is a breeze with our standard backup camera and 7-inch display screen. This versatile chassis provides a clean top-of-rail for easy upfitting with bodies up to 14 feet long and over 5,300 lbs of payload. In addition, the design of the LCF chassis allows more cargo length within a given overall length.
DIMENSIONS & CAPACITY
Wheelbase 130 in.
LxWxH 230x77x88
GVWR 11,000 lbs.
Curb Weight 5,684 lbs.
Max Payload 5,316 lbs.
Bumper to Back of Cab (BBC) 65.8 in.
Cab to Axle (CA) 108.3 in.
Cab to End of Frame (CE) 164.5 in
Maximum Body Length 14 ft.
Maximum Body Width 96 in.
Frame RBM 541,675 (lb.-ft./in.
MECHANICAL
Electric Motor 120 kW
Battery Capacity 89 kWh
Range 125(1) miles
Regenerative Braking Standard
Level 2 Charging up to 12kW
Level 3 DC Charging up to 78kW
Drive Type Rear Wheel Drive (RWD)
PERFORMANCE
Horsepower 160 hp
Torque 235 lb.-ft.
Top Speed 65 mph
DATA CONNECTIVITY
Telematics Optional
EXTERIOR FEATURES
Full Size Spare Tire
Tilt Cab Top/Side Marker Lighting
INTERIOR FEATURES
Analog Gauges with Digital Driver Info Center
Auxiliary Power Outlet
Digital AM/FM/Bluetooth/USB Port
High-Definition Back-Up Camera
7-Inch Infotainment Color Touchscreen
Dual Storage Glove Box
Illuminated Entry, Air Conditioning, Sun Visors
Power Door Locks & Windows
Cloth Seating Surfaces
Adjustable Front Head Restraints
Driver Seat - Manual Fore/Aft with Recline
Passenger Seat - Bench with Fold Down Back
Center Seat with Fold Down Workspace
Center Workspace includes Dual Cupholders/Storage
SAFETY FEATURES
Anti-Theft Alarm System
ABS Braking with Regenerative Braking (ABS)
Electronic Brake-Force Distribution (EBD)
Center Console Manual Parking Brake
Assist Steps and Grab Handles
Power Steering
Remote Keyless Entry (2 Key Fobs)
Note: All figures are reference only and Mullen reserves the right to modify any and all information shown, without notification. Options subject to change.
(1) Combined City/Highway usage with 10 percent remaining battery state of charge. Range can vary depending on conditions such as climate, driving behavior, road conditions, etc.
Why Mullen Commercial?
Help With Climate Change While Helping Your Bottom Line
Benefits:
Up To 50% Reduction in Maintenance Costs*
Up To 65% Reduction In Energy Expenses*
Up To 54% Cost/Mile Savings*
*With reduced fuel and maintenance costs and available government incentives, Mullen Commercial vehicles deliver a low cost of ownership.
