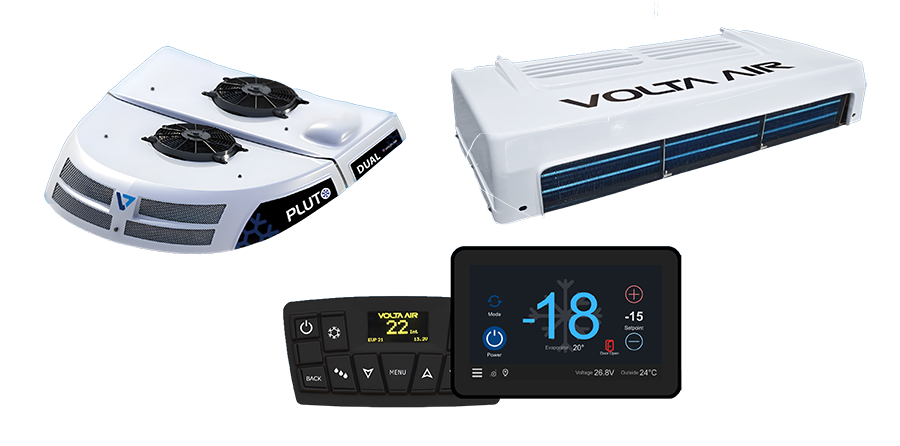

Pluto and Pluto Dual

All-Electric Urban Delivery Reefer Unit
No-Idle Solutions for Lower Costs, Higher Performance, and a Greener Footprint


Pluto Overview

Introducing Pluto series, the all-electric, no-idle reefer units designed and built in North America by Volta Air Technology Inc. to transform your refrigerated transport operations.

Fits Your Fleet
Compatible with both electric (EV), gas or diesel (ICE) vans and small trucks.

Boost Performance
Reliable and advanced cooling for superior cargo protection.

Cut Costs
Reduce maintenance, downtime and fuel consumption. Leverage potential government rebates.

Go Green
Eliminate emissions and pollution. Comply with CARB regulations.

Pluto

The Smart, Simple and Sustainable Choice

Upgrade your fleet with a 12V/24V electric reefer unit that offers more benefits at a lower cost.
Available for conventional and electric vehicles. Here are the key benefits of Pluto:

  • Independent Operation
    No reliance on the engine, saving fuel and maintenance costs.
    Operating costs are 30 to 50% lower.

  • No-Idle Cooling
    Maintains the temperatures during deliveries when the vehicle’s engine is off.

  • Long Running Time
    Can operate all day, whether the vehicle’s engine is on or off.

  • Integrated Stand-by (Optional)
    Optional 110V/240V plug-in for home base charging.

  • Digital Control Panel
    Monitor temperature and settings from the driver’s seat.

  • Smart Control Panel (Available)
    Monitor temperature and seamlessly integrates with the Tritracker system.

  • Low Maintenance Design
    Reduced number of moving parts for long-lasting performance.

  • Quick and Easy Installation
    One person can install Pluto in under a day.

  • CARB Compliant
    Meets California’s strict emissions standards. Potential of rebates availability.

    Pluto Dual

    Double the Cooling, Double the Flexibility

    Upgrade your fleet with a 24V electric reefer unit, Enjoy flexible configuration options and lower
    operating costs, compatible with a wide range of electric and conventional van models.

    • Dual Cooling Power
      Single evaporator, singel zone with dual cooling power.
      (Dual zone cooling available upon request.)

    • Independent Operation
      No reliance on the engine, saving fuel and maintenance costs.

    • No-Idle Cooling
      Maintains the temperatures during deliveries when the vehicle’s engine is off.

    • Long Running Time
      Can operate all day, whether the vehicle’s engine is on or off.

    • Integrated Stand-by (Optional)
      Optional 110V/240V plug-in for home base charging.

    • Digital Control Panel
      Monitor temperature and settings from the driver’s seat.

    • Smart Control Panel (Available)
      Monitor temperature and seamlessly integrates with the Tritracker system.

    • Low Maintenance Design
      Reduced number of moving parts for long-lasting performance.

    • Quick and Easy Installation
      One person can install Pluto in under a day.

    • CARB Compliant
      Meets California’s strict emissions standards. Potential of rebates availability.


Download PDF Brochure



Pluto Unit

Pluto Dual Unit


MODEL

Pluto 24V

Pluto 12V

Voltage

24V

12V

Refrigerant

R134a

R134a

Refrigerant Charge

0.7 kg (1.5 lbs.)

0.7 kg (1.5 lbs.)

Cooling Capacity





+5°C (41°F)

2,050 W (6,995 BTU/H)

1,400 W (4,800 BTU/H)

0°C (32°F)

1,720 W (5,869 BTU/H)

1,000 W (3,400 BTU/H)

-10°C (14°F)

980 W (3,344 BTU/H)

500 W (1,700 BTU/H)

Heating Option

Hot Gas Heating

Hot Gas Heating

Heating Capacity

828 W (2,823 BTU/H)

600 W (2,050 BTU/H)

Defrost

Hot Gas

Hot Gas

Average Working Current

24V 42A (1 kWh)

12V 85A (1 kWh)

Max Current

24V 55A (1.3 kWh)

12V 110A (1.3 kWh)

Compressor Type

24V DC Brushless

12V DC Brushless

Evaporator Fan Speed

≈ 1,190 M³/H (700 CFM)

≈ 930 M³/H (500 CFM)

Condenser Fan Speed

≈ 980 M³/H (580 CFM)

≈ 750 M³/H (440 CFM)

Condenser Dimensions

1076 x 800 x 205 mm (42.4 x 31.5 x 8 in)

1076 x 800 x 205 mm (42.4 x 31.5 x 8 in)

Condenser Weight

39 kg (86 lbs.)

39 kg (86 lbs.)

Evaporator Dimension

766 x 530 x 153 mm (30.2 x 20.9 x 6 in)

766 x 530 x 153 mm (30.2 x 20.9 x 6 in)

Evaporator Weight

15 kg (34 lbs.)

15 kg (34 lbs.)

Applicable Volume

+2°C (36°F): < 14 m³ (494 ft³)

+2°C (36°F): < 14 m³ (494 ft³)



-5°C (23°F): < 10 m³ (353 ft³)

-5°C (23°F): < 10 m³ (353 ft³)

Package Size (Condenser)

1170 x 865 x 254 mm (46 x 34 x 10 in)

1170 x 865 x 254 mm (46 x 34 x 10 in)

Package Size (Evaporator)

825 x 585 x 230 mm (32.5 x 23 x 10 in)

825 x 585 x 230 mm (32.5 x 23 x 10 in)

Control Panel

Digital (Celsius – Fahrenheit)

Digital (Celsius – Fahrenheit)





Add Optional Battery Power



Battery Pack



Number of Batteries

4

8

Battery Pack Weight

80 kg (176.4 lbs.)

160 kg (352.7 lbs.)

Charger Options

1200 W AC - DC / 2400 W AC - DC / 3600 W AC - DC

Pack Capacity

10,250 Wh

20,500 Wh

Estimated Runtime

Up to 6 hours

Up to 12 hours



MODEL

PLUTO DUAL 24V (12V available upon request)



FRESH

Voltage

24V

Refrigerant

R134a (4.8 lbs.)



Cooling Capacity



+15°C (60°F)

6,300 W (21,496 BTU/H)

+5°C (41°F)

5,000 W (17,060 BTU/H)

-15°C (5°F)

2,600 W (8,871 BTU/H)

Heating Option

Hot Gas Heating

Heating Capacity

2900 W (9,895 BTU/hr)

Defrost

Hot Gas

Compressor Type

24V DC Brushless

Evaporator Air Volume

≈ 1,530 M³/H (900 CFM)

AMP Average

24V 86A

AMP Maximum

24V 111A

Condenser Dimensions

1100 x 1265 x 210 mm (43.3 x 49.8 x 8.2 in)

Condenser Weight

61 kg (134.5 lbs.)

Evaporator Weight

23.5 kg (51.8 lbs.)

Control Panel

Digital (Celsius – Fahrenheit) / Analog (By customer Request)







Add Optional Battery Power



Battery Pack



Number of Batteries

4

8

Battery Pack Weight

80 kg (176.4 lbs.)

160 kg (352.7 lbs.)

Charger Options

1200 W AC - DC / 2400 W AC - DC / 3600 W AC - DC

Pack Capacity

10,250 Wh

20,500 Wh

Estimated Runtime

Up to 6 hours

Up to 12 hours





Refrigeration Solutions for Smarter & Sustainable Urban Delivery



Other Volta Air Products

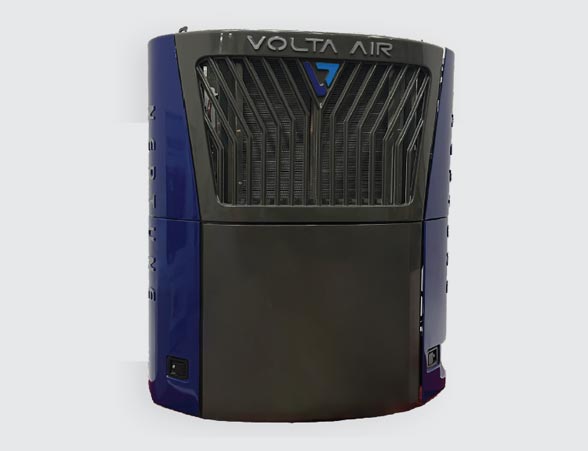

Neptune
